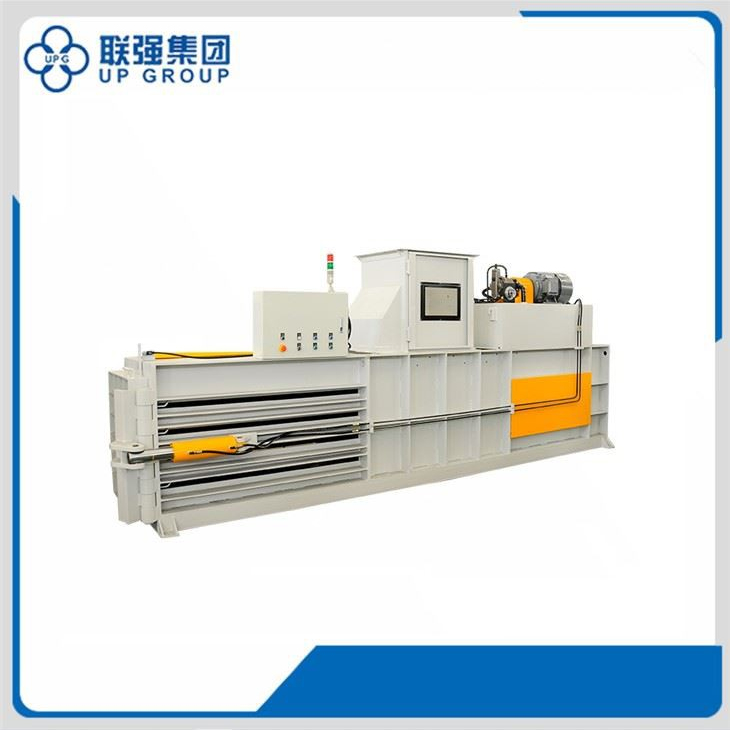

Machine Photo
Technical Specifications (Series 1)
| Model |
LQJPW40BC |
LQJPW60BC |
LQJPW80BC |
| Compression Force |
40ton |
60ton |
80ton |
| Bale Size (WxHxL) |
720x720x(300-1000)mm |
750x850x(300-1100)mm |
1100x800x(300-1100)mm |
| Feed Opening Size (LxW) |
1000x720mm |
1200x750mm |
1350x1100mm |
| Bale Lines |
4 lines |
4 lines |
4 lines |
| Bale Weight |
250-350kg |
350-500kg |
500-600kg |
| Voltage |
380V/50Hz |
380V/50Hz |
380V/50Hz |
| Power |
15Kw/20Hp |
18.5Kw/25Hp |
22Kw/30Hp |
| Machine Size (LxWxH) |
6500x1200x1900mm |
7200x1310x2040mm |
8100x1550x2300mm |
| Bale-Out Way |
One-off bale out |
One-off bale out |
One-off bale out |
Machine Description
✔
Suitable for compression and packaging of conventional materials such as hard cardboard, plastic, fiber, sponge, and cloth.
✔
Closed type left and right opening structure ensures a more compact bale.
✔
High-strength bale-out door with hydraulic locking for safe and convenient operation.
✔
PLC program control with electric buttons, feeding detection, and automatic compression.
✔
Configurable bale length with an integrated bundling reminder device.
✔
Manual wire or rope insertion required only once to complete the twisting, saving labor.
✔
Customizable bale sizes and voltages according to customer requirements.
✔
Equipped with three-phase voltage safety interlock; compatible with air pipe and conveyor feeding.
Why Choose Us?
★
Competitive pricing without compromising on high-quality standards.
★
Strict quality control methods and modern testing machinery for qualified shipment.
★
Commitment to social responsibility with products meeting global safety standards.
★
Comprehensive training offered to help customers maximize product potential.
★
Expert industry image and a brand trusted by global manufacturers.
Technical Specifications (Series 2)
| Model |
LQJPW100BC |
LQJPW120BC |
LQJPW150BC |
| Compression Force |
100ton |
120ton |
150ton |
| Bale Size (WxHxL) |
1100x1100x(300-1100)mm |
1100x1200x(300-1200)mm |
1100x1200x(300-1300)mm |
| Feed Opening Size (LxW) |
1500x1100mm |
1600x1100mm |
1800x1100mm |
| Bale Lines |
5 lines |
5 lines |
5 lines |
| Bale Weight |
600-800kg |
800-1000kg |
1000-1200kg |
| Voltage |
380V/50Hz |
380V/50Hz |
380V/50Hz |
| Power |
30Kw/40Hp |
37Kw/50Hp |
45Kw/61Hp |
| Machine Size (LxWxH) |
8300x1600x2400mm |
8500x1600x2400mm |
8800x1850x2550mm |
| Bale-Out Way |
One-off bale out |
One-off bale out |
One-off bale out |
Frequently Asked Questions
What materials are these balers suitable for?
Our balers are ideal for compressing a wide range of materials including hard cardboard, plastics, fibers, sponges, cloth, and other conventional recycling materials.
How is the compression process controlled?
The machines utilize a PLC program control system with electric buttons, which includes feeding detection and automatic compression for high efficiency.
Can the bale size and voltage be customized?
Yes, we offer customization options for both bale size and voltage to meet the specific requirements and local standards of our customers.
Does the machine support automatic feeding?
While the standard operation is highly automated, the machine can also be equipped with air pipes or conveyors to facilitate faster and more efficient material feeding.
How do you ensure the quality of the baler?
We implement strict quality control methods and utilize modern testing machinery to ensure every unit is fully qualified and meets safety standards before shipment.
Is manual labor required for bundling?
Labor is minimized; iron wire or strapping ropes only need to be inserted manually once to complete the twisting process, thanks to our efficient design.
