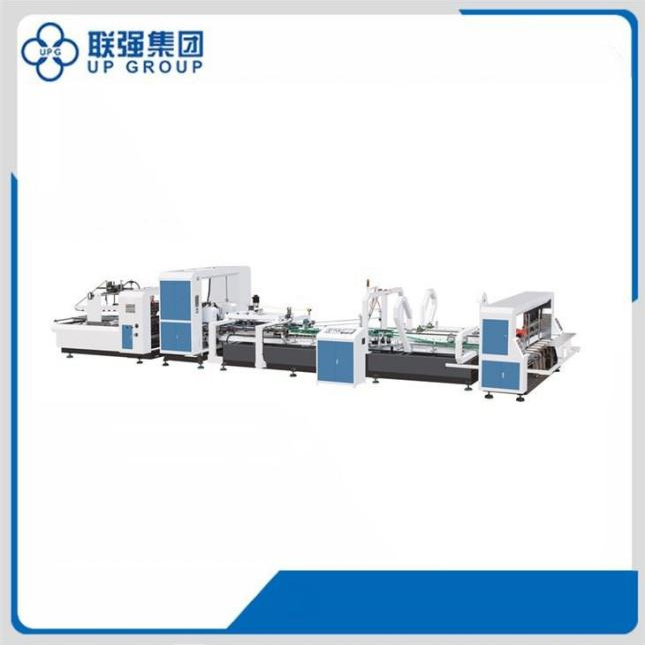

Machine Photo
Specification
| Model |
LQHD-2600 |
LQHD-2800 |
LQHD-3300 |
| Total Power |
25KW |
22KW |
22KW |
| Machine Width |
3.5M |
3.8M |
4.2M |
| Stitching Head Speed (stitching/min) |
1050 |
1050 |
1050 |
| Machine Rated Current |
20A |
20A |
20A |
| Max.Carton Length |
650mm |
800mm |
900mm |
| Min.Carton Length |
225mm |
225mm |
225 |
| Max.Carton Width |
600mm |
600mm |
700mm |
| Min.Carton Width |
200mm |
200mm |
200mm |
| Machine Length |
14M |
14M |
16M |
| Machine Weight |
10T |
11T |
12T |
| Stitch Distance |
20-500mm |
20-500mm |
20-500mm |
| Gluing Speed |
130m/min |
130m/min |
130m/min |
Machine Description
◈Full computer control, easy operation, stable quality, and high speed for maximum economic benefits.
◈Dual function: can paste the box, stitch the box, or paste then stitch in one cycle.
◈Fast order changing within 3-5 minutes with memory function for mass production.
◈One-key conversion between pasting and stitching modes.
◈Suitable for three-layer, five-layer, single piece board, and A, B, C, AB corrugated boards.
◈Side flapping device ensures neat and smooth paper feeding.
◈Capable of stitching bottles covered boxes.
◈Screw distance range: 20mm to 500mm.
◈Max stitching speed: 1050 nails/min (approx. 90pcs/min for three nails).
◈Automated workflow: folding, rectifying, stitching, pasting, counting, and stacking.
◈Adjustable single and double screws.
◈Swing type stitch head for low power consumption and high stability.
◈Paper correction device eliminates "scissors mouth" for perfect box quality.
◈Automatic stitching pressure adjustment based on cardboard thickness.
◈Automatic wire detection for breaks or depletion.
Why Choose Us?
✓Persistent pursuit of high quality in both products and services.
✓Years of operating experience providing perfect solutions for any challenge.
✓Commitment to exceptional quality and competitive pricing.
✓Global customer service philosophy supporting dealers and end-users worldwide.
✓Comprehensive after-sales team offering one-stop worry-free service.
✓Innovation-driven, professional, and sustainable business operations.

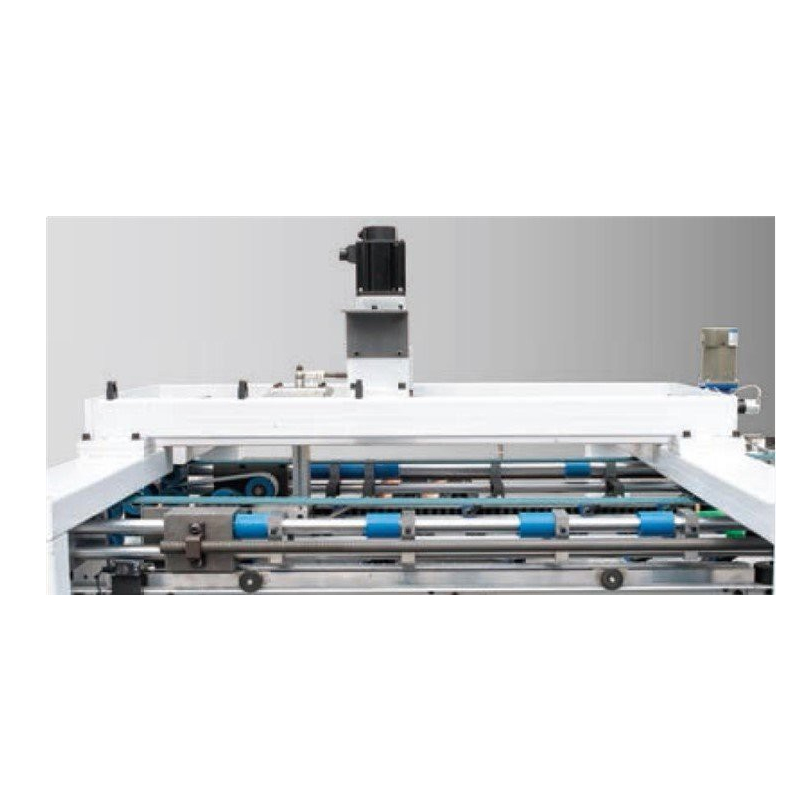

Paper correction device
The secondary compensation and correction box piece not in place phenomenon, eliminate scissors mouth, stitch box more perfect.
Automatic stitch feeding device
Stitch feeding device adopts electrical control, stitch feeding more accurate.

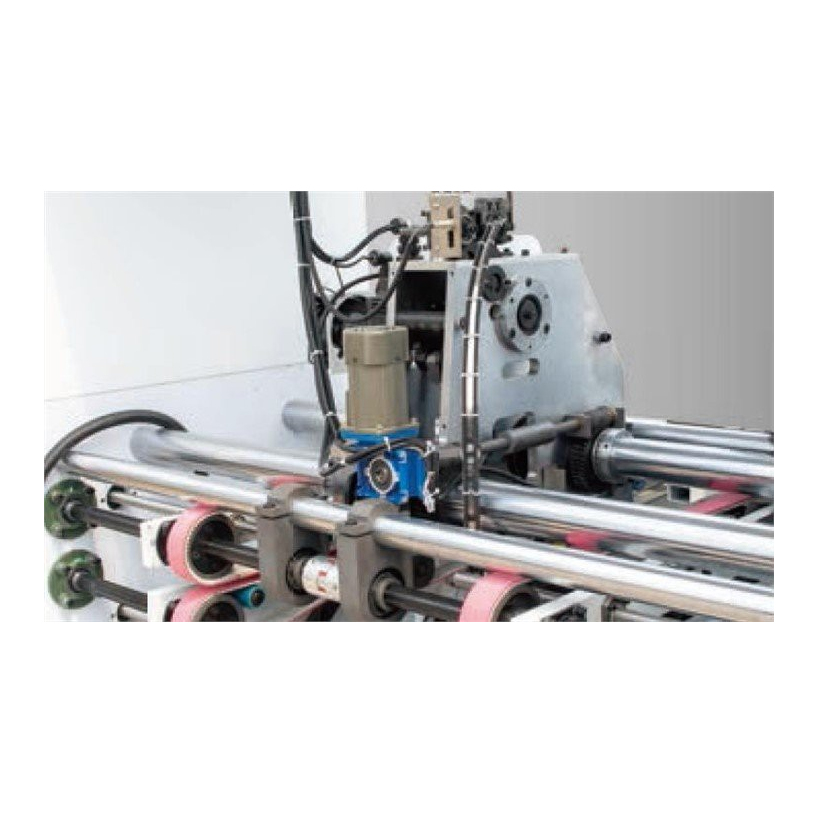

Stitching unit
Adopt synchronous belt conveying, PLC control, touch screen adjustment, convenient, fast and accurate.
Frequently Asked Questions
Q: What types of corrugated boards can this machine process?
A: It is suitable for three-layer, five-layer, single piece board, and A, B, C, and AB corrugated board stitching.
Q: How fast can the machine change orders?
A: Order changes can be completed within 3-5 minutes, thanks to the integrated order memory function.
Q: Does the machine support both gluing and stitching?
A: Yes, it functions as both a folder gluer and a stitching machine, allowing for pasting, stitching, or a combined process.
Q: What is the maximum stitching speed?
A: The stitching head can reach a maximum speed of 1050 nails per minute. For example, with three nails, it can reach 90pcs/min.
Q: How does the machine ensure the quality of the stitch box?
A: It uses a paper correction device to eliminate the "scissors mouth" phenomenon and a swing-type stitch head for improved stability and quality.
Q: Is the operation automated?
A: Yes, it features full computer control and can automatically complete folding, rectifying, stitching, pasting, counting, and stacking.
