Cheap Self-adhesive Paper AW5200P Suppliers, Company

Spec Code: AW5200P Semi-gloss Paper/HP103/BG40#WH ni A bright white one side coated art paper with primer coating.

Send Inquiry

Product Description

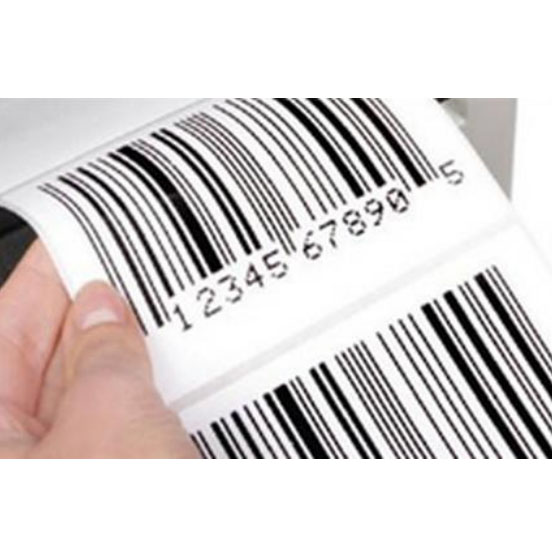

Typical applications are blank die-cutting and code printing.

Applications and Use

Technical Data Sheet (AW5200P)

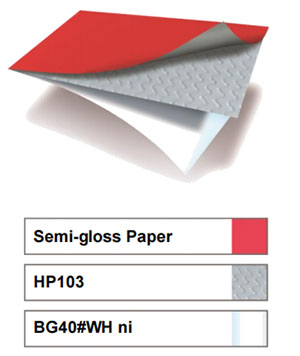

Product Model	AW5200P Semi-gloss Paper / HP103 / BG40#WH ni
Face-stock	A bright white one side coated art paper.
Basis Weight	80 g/m² ±10% (ISO536)
Caliper	0.068 mm ±10% (ISO534)
Adhesive	A general purpose permanent, rubber based adhesive.
Liner	A super calendered white glassine paper with excellent roll label converting properties.
Basis Weight	58 g/m² ±10% (ISO536)
Caliper	0.051 mm ±10% (ISO534)
Performance Data
Loop Tack (st,st)-FTM 9	13.0 or Tear (N/25mm)
20 min 90 Peel (st, st)-FTM 2	6.0 or Tear
24 hour 90 Peel (st, st)-FTM 2	7.0 or Tear
Min. Application Temp.	10 °C
Service Temp. Range	-15°C ~ +65°C (After labeling 24Hours)

Adhesive & Conversion Performance

● Adhesive Performance: The adhesive features excellent initial tack and ultimate bond on a wide variety of substrates. It is suitable for applications where compliance with FDA 175.105 is required for indirect or incidental contact food, cosmetic or drug products.

● Conversion/Printing: This super calendered semi-gloss face-stock provides excellent printing quality by all usual techniques. Care should be taken with ink viscosity; high viscosity may damage the paper surface. Excessive rewinding pressure may cause label bleeding.

Note: We recommend simple text and bar code printing. Not suggested for extremely fine bar coding design or solid area printing.

● Shelf Life: One year when stored at 23 ± 2°C at 50 ± 5% RH.

Key Features

✓ Typical applications include blank die-cutting and code printing.
✓ Suitable for flat or simple curve substrates, including paperboard, film, and HDPE.

⚠ Not recommended for PVC substrates and small diameter surfaces.

Frequently Asked Questions

Q1: What is the recommended storage condition for AW5200P? A: It should be stored at 23 ± 2°C with a relative humidity of 50 ± 5%. Under these conditions, the shelf life is one year.

Q2: Can this label material be used for food packaging? A: Yes, the adhesive complies with FDA 175.105, making it suitable for indirect or incidental contact with food, cosmetic, or drug products.

Q3: Is AW5200P suitable for printing complex, high-density barcodes? A: We recommend it for simple text and standard barcode printing. It is not suggested for extremely fine barcode designs or large solid color area printing.

Q4: What surfaces should I avoid when using this label? A: It is not recommended for use on PVC substrates or surfaces with very small diameters.

Q5: What is the temperature resistance of this product? A: The minimum application temperature is 10°C. Once applied and allowed to set for 24 hours, the service temperature range is between -15°C and +65°C.

Q6: What type of adhesive technology is used in this product? A: It uses a general-purpose permanent, rubber-based adhesive known for excellent initial tack and ultimate bond strength.
