LQ-MD

Send Inquiry

Product Description

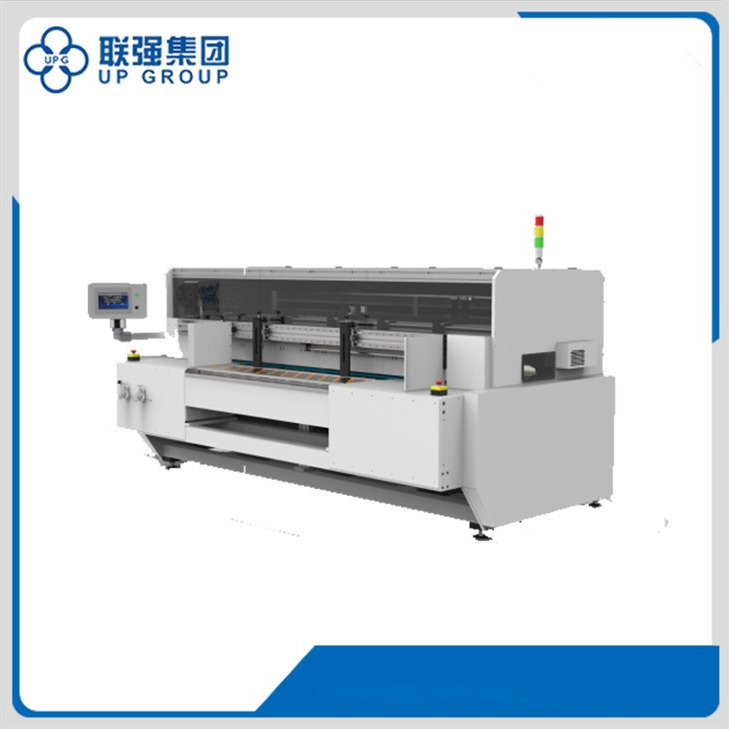

Machine Photo

Specification

Corrugated board type	Sheets and Fanfold (Single, Double wall)
Cardboard thickness	2-10mm
Cardboard density range	Up to 1200g/m²
Max. board size	2500mm width x unlimited length
Min. board size	200mm width x 650mm length
Production Capacity	Appr. 400-600 Pcs/H, Depends on size and box style.
Slotting Knife	2 pcs × 500mm Length
Vertical Cutting knives	4
Scoring/Creasing wheels	4
Horizontal Cutting knives	1
Power supply	Machine 380V±10%, Max. 7kW, 50/60 Hz
Air Pressure	0.6-0.7MPa
Dimension	3900(W) × 1900(L) × 2030mm(H)
Gross Weight	Appr. 3500Kg
Automatic paper feeding	Available
Hand hole on box sides	Available
Certification	CE

Machine Description

LQ-MD 2508-Plus is a multifunctional machine with horizontal slotting and scoring, vertical slitting and creasing, horizontal cutting. It has the function of die-cutting handle holes on both sides of the carton box. It is now the most advanced and multifunctional box making machine, providing all kinds of customized packaging solutions for end users as well as box plants. LQ-MD 2508-Plus is available for a wide range of many areas, such as furniture, hardware accessories, e-commerce logistics, and many other industries.

One operator is enough
Competitive price
Multifunctional machine
Change the order in 60 seconds
Order records > 6000
Local installation & training

Why Choose Us?

⚙️ Our Slitting Scorer Machines are designed to improve efficiency and reduce production costs for our customers.

👷 Our factory employs skilled workers who are trained to produce only the best Slitting Scorer Machines.

💡 We introduce high-end development and large-scale production technology to provide high-quality Automatic Box Making Machines.

🔬 We use scientific quality inspection methods and advanced equipment to prevent quality defects and provide satisfactory services.

🎨 We offer a range of customization options to ensure that our machines meet our customers' specific requirements.

✅ We have a strict quality control process in place to ensure every Slitting Scorer Machine meets high standards.

Frequently Asked Questions

What types of cardboard can the LQ-MD 2508-Plus handle?

The machine is compatible with both Sheets and Fanfold corrugated board, supporting both Single and Double wall types with a thickness range of 2-10mm.

What is the production capacity of this box making machine?

It can produce approximately 400-600 pieces per hour, though the exact capacity depends on the specific box size and style being manufactured.

Can the machine create handle holes in the boxes?

Yes, the LQ-MD 2508-Plus features an integrated die-cutting function specifically for creating hand holes on both sides of the carton box.

How long does it take to change between different box orders?

The machine is designed for high efficiency, allowing operators to change orders in just 60 seconds. It can also store more than 6000 order records.

Is the machine certified for international standards?

Yes, the machine comes with CE certification, ensuring it meets the required safety and quality standards for industrial operation.
