Semi-gloss appearance for a professional finish.
●
Optimized for simple text printing and high-clarity bar code printing.
📋
Technical Data Sheet (AW4200P)

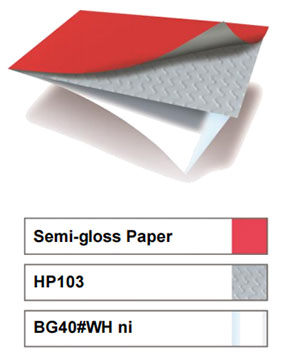

| AW4200P Semi-gloss Paper/AP103/BG40#WH impA |
| Face-stock |
A bright white one side coated art paper. |
| Basis Weight |
80 g/m2 ±10% ISO536 |
| Caliper |
0.068 mm ±10% ISO534 |
| Adhesive |
A general purpose permanent, acrylic based adhesive. |
| Liner |
A supercalendered white glassine paper with excellent roll label converting properties. |
| Basis Weight |
58 g/m2 10% ISO536 |
| Caliper |
0.051mm 10% ISO534 |
| Performance Data |
| Loop Tack (st,st)-FTM 9 |
13.0 or Tear (N/25mm) |
| 20 min 90 Peel (st,st)-FTM 2 |
6.0 or Tear |
| 24 hour 90 Peel (st,st)-FTM 2 |
7.0 or Tear |
| Min. Application Temp |
10 °C |
| Service Temp Range |
-50°C ~ +90°C (After labeling 24 Hours) |
Adhesive Performance: The adhesive is an all-temperature developer providing medium initial tack and excellent adhesion to a wide variety of substrates. It displays excellent die-cutting and stripping characteristics. AP103 is suitable for applications requiring FDA 175.105 compliance for indirect food, cosmetic, or drug contact.
✔
Key Features & Conversion
1.
Typically application is specialized for high-efficiency bar code printing.
2.
Ideal for simple text printing and retail barcoding.
3.
Widely used for food labels and bar codes in supermarkets.
4.
Commonly applied as self-adhesive labels on clothing.
Conversion/Printing Note: Care should be taken with ink viscosity; high viscosity may damage the paper surface. Large rewinding roll pressure may cause label bleeding. Not suggested for solid area printing or extremely fine barcode designs.
Shelf Life: One year when stored at 23 ± 2°C at 50 ± 5% RH.
Frequently Asked Questions
🔹 What are the primary applications for AW4200P?
AW4200P is primarily used for bar code printing, supermarket food labels, simple text labels, and self-adhesive clothing tags.
🔹 Is this label material safe for food packaging?
Yes, the AP103 adhesive used in this product complies with FDA 175.105, making it suitable for indirect or incidental contact with food, cosmetics, or drug products.
🔹 What temperature range can these labels withstand?
The minimum application temperature is 10°C. Once applied and allowed to set for 24 hours, the service temperature range is between -50°C and +90°C.
🔹 What are the printing recommendations for best results?
We recommend simple text and standard bar code printing. It is not suggested for extremely fine bar code designs or large solid area printing. Ensure ink viscosity is controlled to prevent surface damage.
🔹 How should the rolls be stored to ensure longevity?
The product has a shelf life of one year when stored in controlled conditions of 23 ± 2°C and 50 ± 5% relative humidity (RH).
🔹 What type of liner and adhesive does this product feature?
It features a white glassine paper liner (BG40#WH) for excellent converting properties and a permanent, acrylic-based adhesive (AP103).
