Key Features
Designed for short lifecycle labeling or weigh scale applications.
Technical Data Sheet (NW5609L)
Applications and Use
- This thermo sensitive product is designed for weight scale printing.
- Exposure to sunshine or temperatures above 50°C should be avoided.
- Features normal resistance to water; not recommended for use in harsh environments with possible contact with oil or grease, or prolonged watery environments.
- Not suitable for Ladder barcode thermal printing.
- Not recommended on PVC substrates and not recommended for logistic labels.

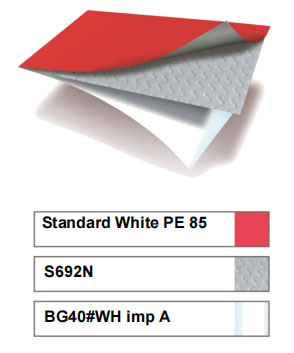

| Face-stock: A bright white one side coated art paper with primer coating. |
| Basis Weight |
68 g/m2 ±10% (ISO536) |
| Caliper |
0.070 mm ±10% (ISO534) |
| Adhesive: A general purpose permanent, rubber based adhesive. |
| Liner: A super calendared white glassine paper with excellent roll label converting properties. |
| Basis Weight |
58 g/m2 ±10% (ISO536) |
| Caliper |
0.051mm ±10% (ISO534) |
| Loop Tack (st, st)-FTM 9 |
10.0 or Tear |
| 20 min 90° Peel (st,st)-FTM 2 |
5.0 or Tear |
| Minimum Application Temperature |
+10°C |
| Service Temperature Range (After 24h) |
-15°C to +45°C |
Adhesive Performance
The adhesive features high initial tack and ultimate bond on a wide variety of substrates. It is suitable for applications where compliance with FDA 175.105 is required for indirect or incidental contact with food, cosmetic, or drug products.
Conversion and Printing
Printing testing is always recommended before production. Due to thermal sensibility, the material temperature during processing should not exceed 50°C. Solvent based inks may cause damage to surface coating; care should be taken during use.
Shelf Life
One year when stored at 23 ± 2°C at 50 ± 5% RH.
Frequently Asked Questions
Q1: What is the primary use for the NW5609L thermal paper?
It is specifically designed for short lifecycle labeling, primarily for weight scale printing and retail applications.
Q2: Can this label be used on food packaging?
Yes, the adhesive complies with FDA 175.105 for indirect or incidental contact with food products.
Q3: What are the temperature limitations for this product?
Processing temperature should stay below 50°C. Once applied, it can withstand service temperatures from -15°C to +45°C.
Q4: Is the NW5609L suitable for outdoor or high-moisture environments?
No, it is not recommended for harsh environments involving long-term water exposure, oil, or grease, and it should be kept out of direct sunshine.
Q5: What type of adhesive is used in this product?
It features a permanent, rubber-based adhesive designed for high initial tack and strong bonding across various substrates.
Q6: How long can the labels be stored before use?
The product has a shelf life of one year, provided it is stored at 23 ± 2°C and 50 ± 5% relative humidity.
