ODM Automatic folder gluer stitcher machine Company, Service

LQHD-2600GSP

Send Inquiry

Product Description

Specification

Model	LQHD-2600GSP	LQHD-2800GSP	LQHD-3300GSP
Total Power	50KW	50KW	50KW
Machine Width	3.5M	3.8M	4.2M
Stitching Head Speed (Stitching/Min)	1200	1200	1200
Machine Rated Current	30A	30A	30A
Max. Carton Length	650mm	800mm	900mm
Min. Carton Length	220mm	220mm	220mm
Max. Carton Width	600mm	600mm	700mm
Min. Carton Width	130mm	130mm	130mm
Machine Length	17.5M	17.5M	20M
Machine Weight	13T	15T	18T
Stitch Distance	20-500mm	20-500mm	20-500mm
Gluing Speed	130m/min	130m/min	130m/min

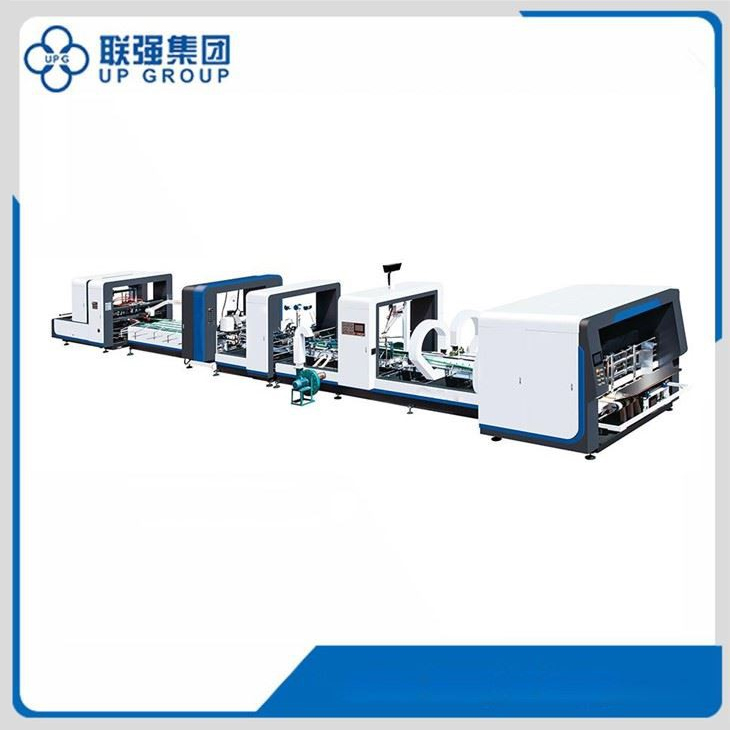

Machine Description

The biggest feature of this machine is full computer control, easy operation, stable quality, and speed that achieves high economic benefits while saving manpower.
This machine is a combined folder gluer and stitching machine, which can paste the box, stitch the box, or paste first and then stitch in one cycle.
Order changing can be set within 3-5 minutes with mass production capability (includes order memory function).
Paste box and stitching box functions achieve true one-key conversion.
Suitable for three-layer, five-layer, and single-piece boards including A, B, C, and AB corrugated board stitching.
Equipped with an automatic line touching function for superior molding effects.
Screw distance range: Minimum 20mm, maximum 500mm.
Max. stitching speed of the stitching head: 1200 nails/min.
For speed with three nails as an example, the top speed reaches 150pcs/min.
Automatically completes paper folding, rectifying, stitching, pasting, counting, and stacking output.
Single and double screws can be adjusted freely.
Adopts a swing-type stitching head for low power consumption, faster speed, and improved quality.
Adopt paper correction device to solve secondary compensation and eliminate "scissors mouth" issues.
Stitching pressure adjusts automatically according to the thickness of the cardboard.
Automatic wire feeding machine detects broken wire or empty wire supply.

Why Choose Us?

Our Automatic Folder Gluer and Stitching Machine products meet or exceed industry standards for quality and performance.
We adopt a management philosophy focused on innovation, efficiency, and immediate action.
Superior quality products offered at highly competitive prices.
Years of production and sales experience ensure we understand and respond to customer needs effectively.
Comprehensive warranties on all machines ensure our clients' peace of mind.
Long-term cooperative relations with many enterprises based on strength and excellent service.
Equipped with the latest technology and machinery to ensure accuracy and consistency.
Strong technical strength and marketing capabilities across the industry.
State-of-the-art manufacturing ensures efficiency and high precision.
Compliant operations with rapid response and high-quality product solutions.

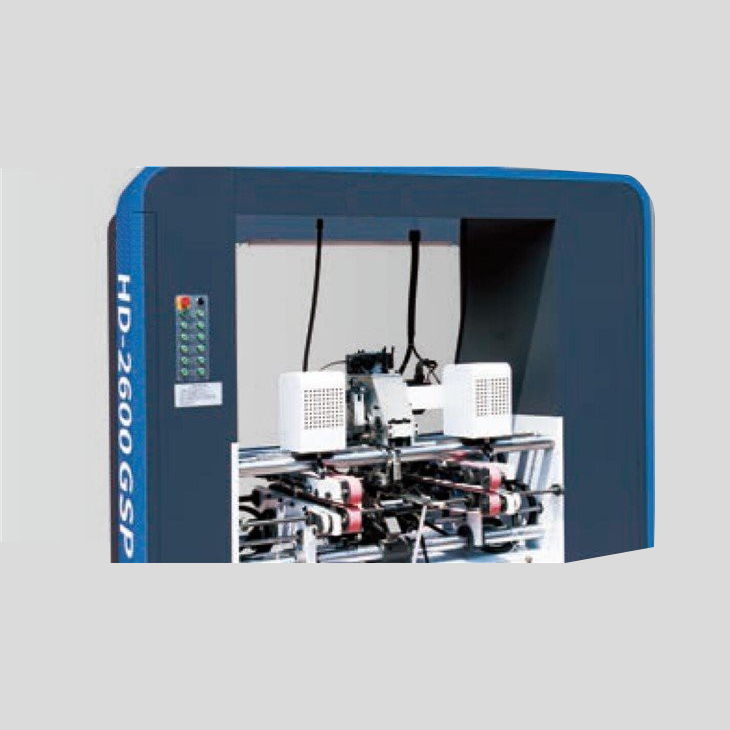

Stitching Unit

Adopt synchronous belt conveying, PLC control, and touch screen adjustment for convenient, fast, and accurate operation.

Digital Feeder

Full computer control with automatic regulation and one-key adjustment for maximum efficiency.

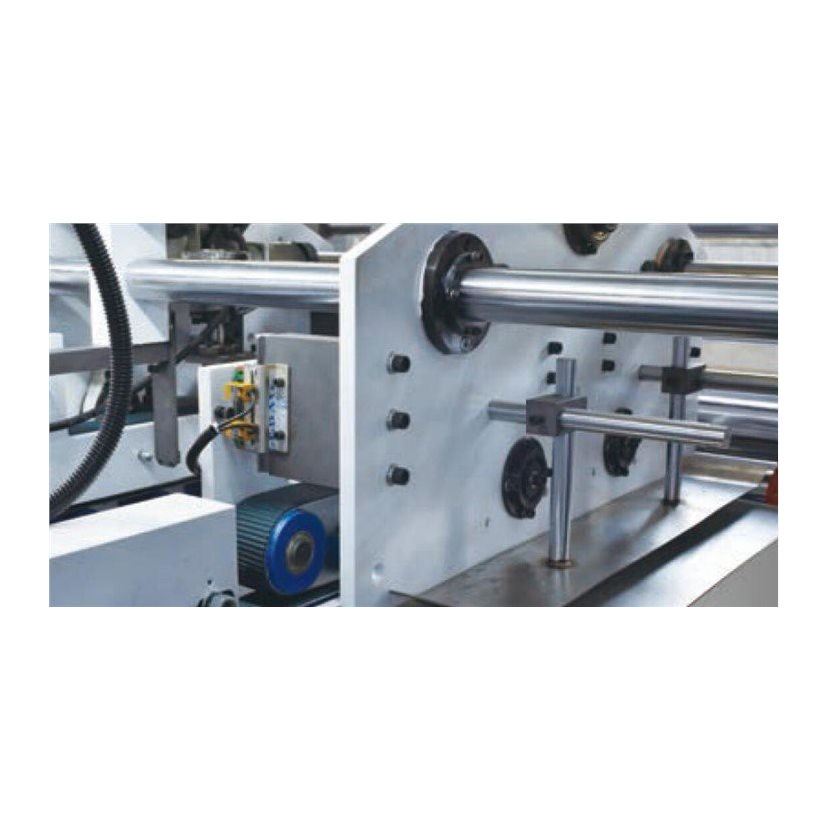

High-speed Line Touching Device

Full computer control to achieve a continuous touch line function for better molding.

Frequently Asked Questions

Q: What is the maximum speed of the stitching head? A: The stitching head can reach a maximum speed of 1200 nails per minute.

Q: Can this machine handle different types of corrugated board? A: Yes, it is suitable for three-layer, five-layer, and single-piece boards including A, B, C, and AB corrugated board.

Q: How long does it take to change an order? A: Order changes can be completed within 3 to 5 minutes thanks to the full computer control and order memory function.

Q: Does the machine perform both gluing and stitching? A: Yes, it is a versatile machine that can perform gluing (folder gluer), stitching, or a combination of both.

Q: How is the stitching distance adjusted? A: The stitching distance is computer-controlled and can be adjusted between 20mm and 500mm.

Q: Does the machine have an automatic correction feature? A: Yes, it adopts a paper correction device to eliminate "scissors mouth" and ensure the box pieces are perfectly aligned.
