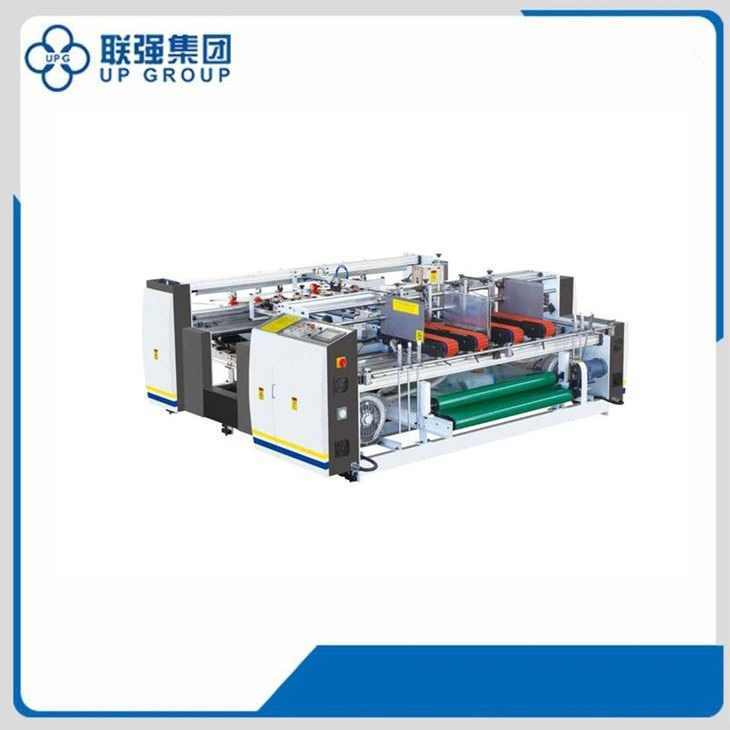

ODM High speed double piece folder gluer Manufacturer, Supplier

LQQYHX-F

Send Inquiry

Product Description

Specification

Board Size (Single Sheet)	Max. 2400x1200mm / Min. 500x300mm
Board Size (Double Sheet)	Max. 1200x1200mm / Min. 500x300mm
Suitable Board	A-E 3 Ply Corrugated Board; ≤8mm 5 Ply Corrugated Board
Max. Mechanical Speed	0-3800 sheets/hour
Total Power	3 Phase 380v 50hz 9kw
Heating Power	1.8kw
Net Weight	2800kg
Overall Dimensions	4060x3200x1660mm (LxWxH)

Scope of Application

LQQYHX-2400F High Speed Folder Gluer is designed for double sheets (AA or AB) and single sheet box making, replacing manual labor to improve efficiency and quality.

Developed based on comprehensive market analysis to provide a labor-saving and efficient solution with excellent performance.

Equipped with four sets of servo motors and double servo feeding to ensure stability, synchronization, and precise handling of varying sheet sizes.

Middle glue unit utilizes dual pasting (hot melt and sealing glue) for 100% strong adhesion suitable for cold storage environments.

High precision positioning maintained by double servo motors across both low and high operating speeds.

Dual-use system capable of producing both flat and shaped boxes with quick front gauge adjustments.

Fast conversion: Takes only two minutes to switch production between double sheets and single sheets.

Why Choose Us?

We are a reliable factory offering high-quality Automatic Folder Gluer products at competitive prices.

Trusted manufacturer and supplier providing unmatched quality, service, and precise testing foundations.

Commitment to a high-performance culture, attracting top talent to ensure excellence in every machine produced.

Frequently Asked Questions

Q: What types of corrugated board can this machine process? A: It is suitable for A-E 3 Ply Corrugated Board and 5 Ply Corrugated Board with a thickness of ≤8mm.

Q: Can the machine handle both single and double sheet boxes? A: Yes, it is a dual-purpose machine designed for both double sheets (AA or AB) and single sheet production.

Q: How fast can the LQQYHX-2400F operate? A: The machine has a mechanical speed range of 0-3800 sheets per hour.

Q: How long does it take to switch between single and double sheet modes? A: The conversion process is very efficient, taking only about two minutes.

Q: What ensures the gluing strength for products in cold storage? A: The machine uses a double pasting system incorporating both hot melt glue and sealing glue for 100% strong adhesion.

Q: What is the positioning precision of the machine? A: It uses four sets of servo motors to ensure the same high precision at both low and high operating speeds.
