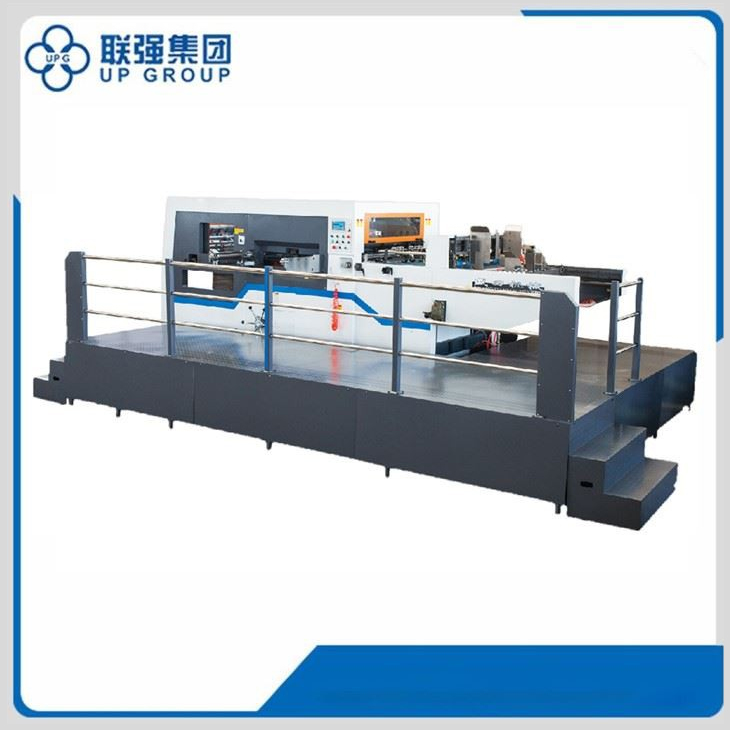

Machine Photo
Technical Specifications
| Model |
LQMX1300P |
LQMX1450P |
| Max. Paper Size |
1320x960mm |
1450x1110mm |
| Min. Paper Size |
450x420mm |
550x450mm |
| Max. Die-Cutting Size |
1300x950mm |
1430x1100mm |
| Inner Size of Chase |
1320x946mm |
1512x1124mm |
| Paper Thickness |
Corrugated board ≤ 8mm |
Corrugated board ≤ 8mm |
| Gripper Margin |
9-17mm (Standard 13mm) |
9-17mm (Standard 13mm) |
| Max. Working Pressure |
300 Ton |
300 Ton |
| Max. Mechanical Speed |
6000 sheets/h |
6000 sheets/h |
| Total Power |
30kw |
30.5kw |
| Air Source Pressure/Flow |
0.55-0.7MPa / >0.6m³/min |
- |
| Net Weight |
23 Ton |
25 Ton |
| Overall Dimensions (LxWxH) |
9060x5470x2370mm |
9797x5460x2290mm |
Machine Description
This machine is a special equipment for die-cutting of high-end color corrugated boxes, achieving full automation from paper feeding to delivery.
⚙️
Innovative Feeding: The unique lower sucker structure realizes continuous non-stop paper feeding, effectively avoiding scratches on color boxes.
🏗️
Robust Construction: Body components are made of high-strength nodular cast iron, processed by 5-sided CNC to ensure zero deformation at high speeds.
🕹️
Advanced Control: Features a high-resolution touch screen with PLC program for monitoring the entire operation and a trouble-shooting system.
⛓️
Precision Transmission: Uses precise worm gears, German-made chains, and Italian pneumatic clutches for stable operation and high pressure.
The gripper bar is crafted from special super-hard aluminum alloy with an anodized surface, offering strong rigidity and light weight for precise die-cutting even at maximum mechanical speeds.
Why Choose Our Solutions?
- Global Trust: From small businesses to large industrial operations, our flatbed die-cutting machines are trusted worldwide.
- Continuous Innovation: We prioritize R&D to ensure our technology leads the market in efficiency and cost-effectiveness.
- Quality Assurance: We use state-of-the-art equipment and high-grade alloy materials to meet exact customer specifications.
- Operational Excellence: Our machines are designed to streamline production, significantly reducing costs and improving output.
- Comprehensive Support: Our team is committed to exceptional service, ensuring smooth operation from development to after-sales.
Frequently Asked Questions
Q1: What types of materials can this die-cutting machine handle?
The machine is specifically designed for high-end color corrugated boards with a thickness of up to 8mm.
Q2: What is the maximum production speed of the LQMX series?
Both the LQMX1300P and LQMX1450P models can reach a maximum mechanical speed of 6000 sheets per hour.
Q3: How does the machine prevent scratching on printed color boxes?
It utilizes a unique lower sucker structure and a specialized anti-scratch mechanism to ensure the paper surface remains pristine during feeding.
Q4: Is the paper feeding process automated?
Yes, the feeding system is controlled by a servo motor and mechanical transmission, allowing for stable, non-stop automation.
Q5: What kind of pressure can the machine exert during die-cutting?
The machine provides a maximum working pressure of 300 tons, ensuring clean cuts for heavy corrugated materials.
Q6: How is the machine's operation monitored?
It features a human-computer interaction interface via a high-resolution touch screen and PLC control for real-time monitoring and troubleshooting.
