Wholesale Semi automatic diecutting stripping machine Supplier, Suppliers

LQMB-P

Send Inquiry

Product Description

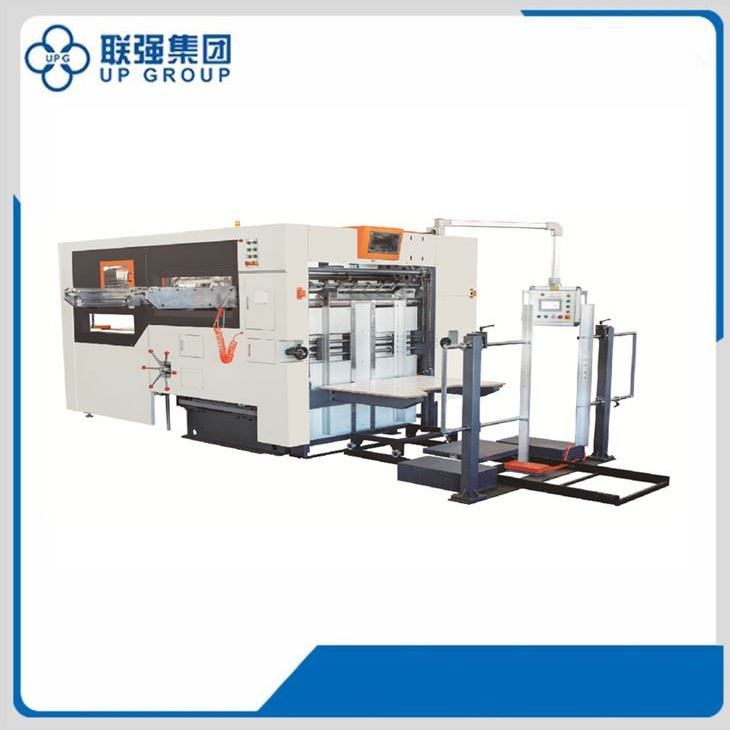

Machine Photo

Specification

Model	LQMB-1300P	LQMB-1450P
Max. Paper Size	1320x960mm	1500x1110mm
Min. Paper Size	450x420mm	550x450mm
Max. Diecutting Size	1320x958mm	1430x1110mm
Inner Size of Chase	1320x976mm	1500x1124mm
Paper Thickness	≤8mm Corrugated board	≤8mm Corrugated board
Gripper Margin	9-17mm Standard 13mm	9-17mm Standard 13mm
Max. Working Pressure	300ton	300ton
Max. Mechanical Speed	6000sheets/h	5500sheets/h
Total Power	13.5kw	13.5kw
Compressed Air Requirement	0.55-0.7MPa / ≥0.6m³/min
Net Weight	16000Kg	16500Kg
Overall Dimensions (LxWxH)	7043x4450x2500mm	7043x4500x2500mm

Machine Description

This equipment is designed for precision die-cutting of high-end color corrugated boxes, achieving full automation from paper feeding to delivery. The unique lower sucker structure ensures continuous non-stop paper feeding while effectively preventing scratches on colored surfaces.

Sturdy Construction: Body and platforms are made of high-strength nodular cast iron, processed by a five-sided CNC to ensure zero deformation at high speeds.

High Stability: Uses a precise worm gear and crankshaft mechanism for stable transmission, high pressure, and accurate pressure holding.

Intelligent Control: High-resolution touch screen for PLC program control and real-time monitoring of all operations and photoelectric sensors.

Precision Components: Gripper bars made of super-hard anodized aluminum alloy and German-made chains ensure high-speed accuracy.

Advanced Clutch: High-quality pneumatic clutch offers long life, low noise, and stable braking with large transmission force.

Automatic Delivery: Features an auto-lowering delivery table with alarms and anti-return photoelectric detection for neat stacking.

Why Choose Us?

Our flatbed die-cutting and stripping machines are versatile for a wide range of cost-effective applications.
We provide rigorous quality assurance through advanced production technology and high-quality management.
Supported by a team of experienced professionals dedicated to ensuring customers receive the best service.
We actively carry out international trade and follow market trends to introduce innovative solutions.
We understand the importance of timely delivery and strive for fast shipping.
Our Semi-Automatic Die-cutting Stripping Machine is recognized globally for its advanced design.
Dedicated customer support from product selection through to after-sales services.
Commitment to green and sustainable development with exceptional customer service throughout the buying process.

Frequently Asked Questions

Q: What is the maximum thickness of corrugated board this machine can handle?

A: The machine is capable of processing corrugated boards with a thickness up to 8mm.

Q: How does the machine prevent scratches on color-printed boxes?

A: It utilizes a unique lower sucker structure that allows for continuous, non-stop paper feeding while specifically protecting the surface of color boxes from damage.

Q: What is the production speed of the LQMB-1300P model?

A: The maximum mechanical speed of the LQMB-1300P is 6000 sheets per hour.

Q: Is the machine easy to monitor for faults?

A: Yes, it is equipped with a high-resolution touch screen and a PLC program that includes a comprehensive trouble monitoring system and photoelectric sensors for real-time safety.

Q: What materials are used for the main machine components?

A: The machine body and platforms are made of high-strength nodular cast iron, and gripper bars are made of special super-hard aluminum alloy for maximum durability and precision.

Q: How does the paper collection system work?

A: The system includes an automatic paper arranging device and a delivery table that lowers automatically as the stack grows. It also features automatic alarms and speed reduction when the table is full.
