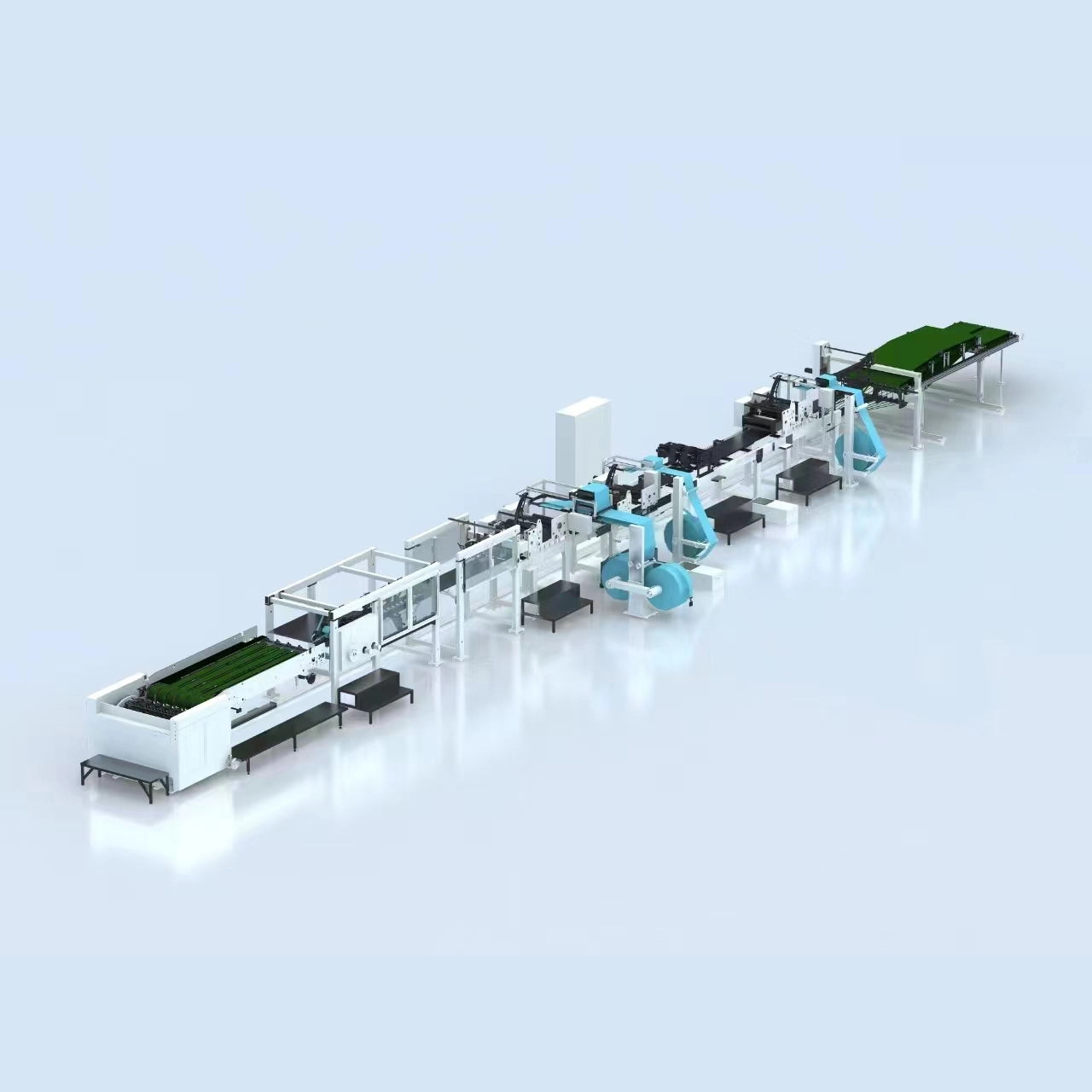

ODM LQ FM2018 Single Head Bottomer Machine Manufacturers, Company

Can handle 2-4 layers of paper: ● Able to produce one side closed paper bag.Feed one side closed bag into the machine then can produce double side closed bag. ● With internal reinforcement and external reinforcement mechanism. ● Able to produce square bottom valve paper bag, super sonic valve bag, and paper-plastic square bottom bag.

Send Inquiry

Product Description

Technical Parameters

Machine Type	LQ FM2018
Bag length (Double head glued bag)	365-850 mm
Bag width	350-600 mm
Bag bottom width	90-200 mm
Max design speed	100 bags/min
Size of the machine	28.72 x 5.2 x 2.3 m
Power	30Kw

Features

Technological Process

Feed conveying array mechanism

Rotary roller feeding method. The small roller rotates around the large roller, and at the same time rotate reversely to absorb paper tube. The large roller can absorb 8 paper tubes for rotating one round.

Planetary rotation vacuum suction feeding mechanism has simplest path, reliable work and stable feeding.

Equipped with sorting and positioning arrangement device to ensure the accuracy of the position around the paper bag cylinder entering the subsequent process.

Indentation & straight cutting mechanism

Equipped with oblique indentation function, the position of oblique indentation can be adjusted without stopping the machine.

Equipped with straight cutting function, mainly used in the paste-bottom process of flat cutting paper tubes. Cut the two mouths of the paper bag at the same time.

Change the paper tubes from horizontal to vertical.

Open & Horn flattening mechanism

Equipped with vacuum suction mechanism, which is used to open the mouth of the paper tubes, so that the horn of the mechanism can be smoothly inserted into the mouth of the paper tubes.

Equipped with a horn mechanism, to open the mouth of paper bags and make it in a symmetrical diamond shape.

Equipped with a flattening mechanism to assist the horn to form the bottom of the paper bag, and compact the diamond-shaped structure at the bottom of the paper bag.

Valve mechanism

Correction mechanism direct the reinforcement paper to the right path. The paper pinched by the pinch roll travels through the glue wheel and then be pasted on the bag.

It can be inserted into a single paper external or built-in valve port, paper clip film misaligned built-in valve port.

Equipped with differential mechanism, which can adjust the position of the inserted paper and paper tubes online.

Change the parameters on screen to set the valve port paper lengths.

Internal reinforcement mechanism

Electronic control system scrutinize the process. If there's no bag in position, control system will cancel pinching paper so that the paper will not be glued and will be sent to the exit.

Equipped with the differential adjustment device, can flexibly adjust the position of the paper tape without stopping the machine; Change the parameters on screen to set lengths.

Indentation & bottom closing & forming mechanism

Equipped with paper bag bottom indentation device to assist bottom forming; Equipped with a large glue wheel device. Flexibly change the shape of the rubber plate.

The forming device is composed of upper and lower inner/outer core plates. The paper wing is supported by the inner core plate to form a square bottom, firmly pasted by a compacting wheel.

External reinforcement institutions

Equipped with full servo paper feeding mechanism with color sensor, which has the color mark cutting mode and fixed length cutting mode.

Bottom-flipping mechanism

The bottom of the bag is flipped at a 90-degree angle to fit the bag body for better compaction and overlapping conveying. Flipping & guiding bar gently flatten the bottom into the compaction conveyor belt.

Compaction and outputing mechanism

Equipped with counting device, vacuum adsorption and accelerated separation device to separate stacked paper bags after reaching the preinstalled number.

The paper bags are separated into the bag collection platform for palletizing.

Can handle 2-4 layers of paper.

Able to produce one side closed paper bag and double side closed bags.

Integrated internal and external reinforcement mechanisms.

Produces square bottom valve bags, super sonic valve bags, and paper-plastic bags.

Frequently Asked Questions

Q1: What types of paper bags can this machine produce? A: The LQ FM2018 is capable of producing square bottom valve paper bags, super sonic valve bags, and paper-plastic square bottom bags. It can also handle both one-side and double-side closed bags.

Q2: How many layers of paper can the machine process? A: The machine is designed to handle between 2 to 4 layers of paper, making it suitable for heavy-duty industrial bag production.

Q3: What is the maximum production speed of the LQ FM2018? A: The maximum design speed is 100 bags per minute, ensuring high efficiency for large-scale manufacturing.

Q4: Can the valve port paper length be adjusted during operation? A: Yes, you can change parameters directly on the touchscreen to set valve port paper lengths, and the differential adjustment device allows for online positioning without stopping the machine.

Q5: How does the machine ensure accurate bag feeding? A: It utilizes a planetary rotation vacuum suction feeding mechanism and a positioning arrangement device to ensure the paper tubes enter the subsequent processes with high precision.

Q6: Does the machine include a counting system? A: Yes, it is equipped with a counting device and an accelerated separation device that separates the stacked paper bags automatically once the preinstalled number is reached.
