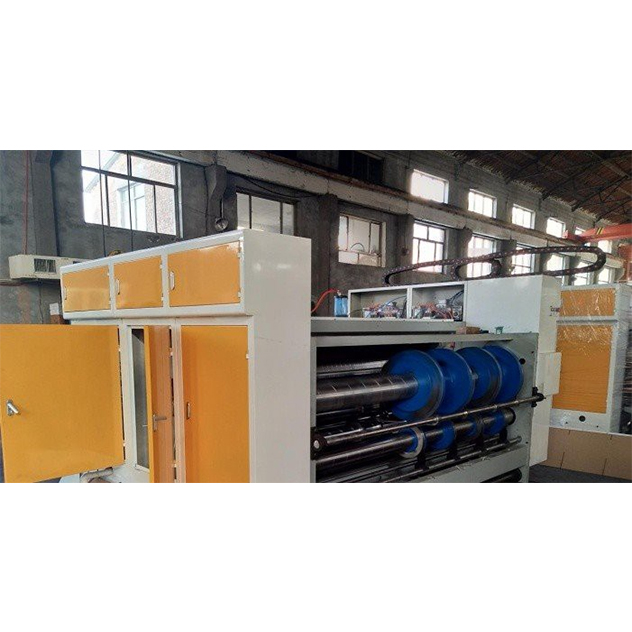

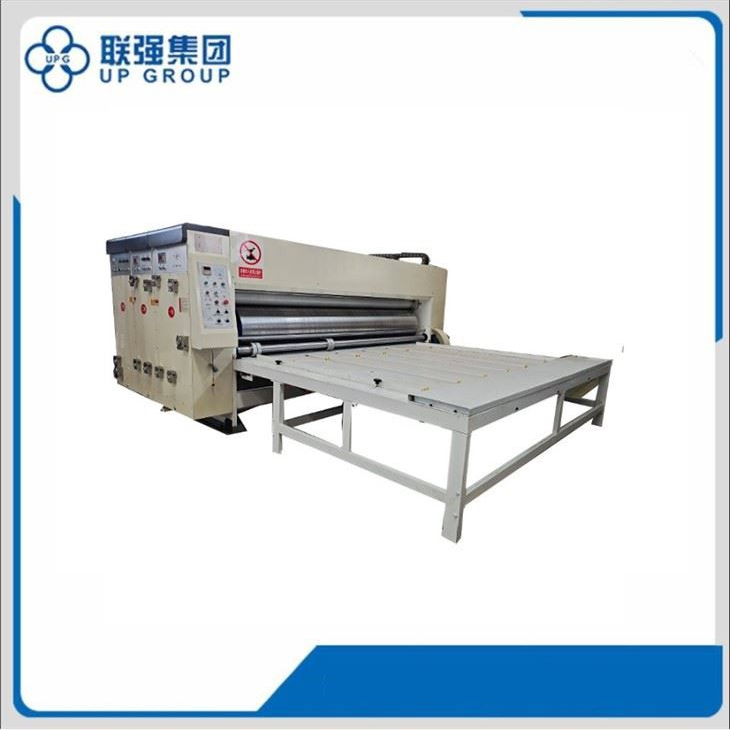

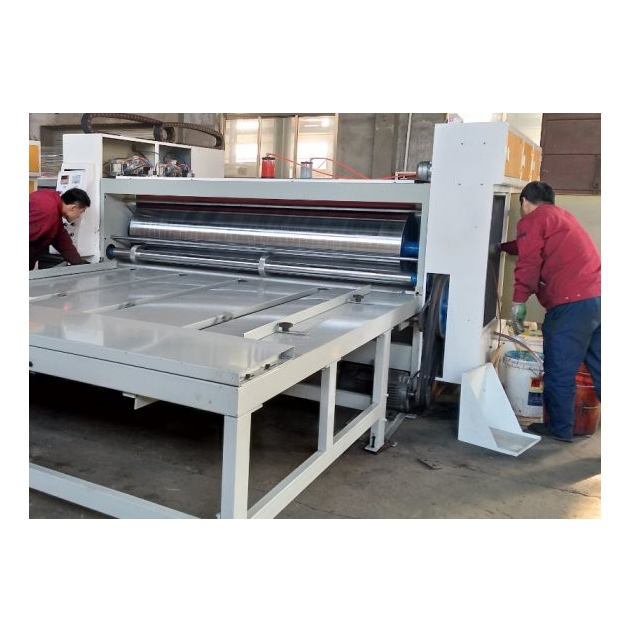

LQLYK Semi Automatic Flexo Printing Slotting Diecutting Machine
Send Inquiry

Product Description

Specification
Max. Sheet Size 920x1900mm
Max. Printing Size 920x1700mm
Min. Sheet Size 320x750mm
Printing Plate Thickness 6.0mm
Corrugate Board Thickness 2-12
Max Mechanical Speed 80 Pcs/min
Economy Speed 60 Pcs/min
Main Motor Power 7.5kw
Machine Description
Machine Overview
  • Complete machine wall board and other important pieces are all made by high precision process center.
  • All transmission axle and roller are made of high quality steel with high precision dynamic balance, plated with rigid chrome and grinded surface.
  • The transmission gear adopt international standard 45# steel, which is grinded after heat-treatment, hardness HRC45-52, after long use, it still maintains the high topping precision.
  • Whole machine main structure part using capt-lock union link, eliminated the link interval, adapt to the long term high-speed printing.
  • Machine adopt the spray lubrication style, and have the oil self-balance device.
Why Choose Us?
  • We pride ourselves on our reputation for excellence and attention to detail.
  • With outstanding performance, our company has interpreted the core values of "enterprise innovation and development, staff commitment to win-win, and common contribution to society".
  • Quality is our top priority, and our machines are designed to last for years.
  • We pay great attention to responsibility, not only to the market, but also to our employees and society.
  • Our machines are made with high-quality materials and the latest technology, ensuring reliable and efficient performance.
  • Our Semi Automatic Flexo Printing Slotting Diecutting Machine are highly praised by the majority of users because of their reasonable price, excellent quality, flexible sales mode and warm and thoughtful service.
  • We are committed to providing our customers with the best possible experience, from initial consultation to installation and training.
  • We are willing to work hand in hand with our customers to get rewarded and seek win-win in cooperation.
  • Our machines are made using the latest technology and are designed to be user-friendly and easy to operate.
  • In the process of continuous entrepreneurship and innovation, we always adhere to the development line of human values first.
Print Unit Details
Print Unit
  • High precision dynamic balance anilox, fine printing effect 180, 200, 220 items by choose.
  • The print phase 360° adjustment, print roller can be adjusted horizontally ranging from ±10mm.
  • The interval of transmission roller, paper press roller, and rubber roller and anilox roller adopt the self-lock structure.
  • Brush plate reset, and ink clean mechanism.
  • Print roller adopt options glue plate or handing plate, has rapid handing plate mechanism.
  • Options: separately position device, ensure the print phase unchanged after separated unit.
Slot Unit Details
Slot Unit
  • Slotting knives set can horizontal movement, precision gear with smooth bar which plated with rigid chrome and grinded surface, movement flexible and accurate orientation of upper and lower cutting.
  • The phase of slotting adjust by electric digital 360°, slot height by manual.
  • The press line wheel and slotting knives movement in a joint, control by manual.
  • The slotting and press line interval adjustment adopt the self-lock structure.
Frequently Asked Questions
Q1: What is the maximum production speed of this machine? A: The maximum mechanical speed is 80 Pcs/min, with an economy operating speed of 60 Pcs/min.
Q2: What thickness of corrugated board can this machine process? A: It is designed to handle corrugated board thicknesses ranging from 2mm to 12mm.
Q3: How accurate is the printing phase adjustment? A: The print phase features a 360-degree adjustment, and the print roller can be adjusted horizontally by ±10mm for high precision.
Q4: What materials are used for the transmission gears? A: The gears are made of international standard 45# steel, heat-treated and ground to a hardness of HRC45-52 for long-term durability.
Q5: Is the machine equipped with a lubrication system? A: Yes, the machine utilizes a spray lubrication style and includes an oil self-balance device for smooth operation.
Q6: What are the options for the anilox roller? A: You can choose from 180, 200, or 220 items depending on your specific fine printing requirements.

Related Products

High-Quality High speed flexo printing slotter die cutter machine Manufacturers, Company

High-Quality High speed flexo printing slotter die cutter machine Manufacturers, Company
Buy Chain Feeder Flexo Printer Slotter for Corrugated Carton Making Machine Factories, Service

Buy Chain Feeder Flexo Printer Slotter for Corrugated Carton Making Machine Factories, Service
Custom Flexo printing slotter die cutter machine Factory, Service

Custom Flexo printing slotter die cutter machine Factory, Service
Discount Flexo printing slotting die cutting machine Exporter, Exporters

Discount Flexo printing slotting die cutting machine Exporter, Exporters
Buy Large format sheet fed offset printing press Manufacturer, Factory

Buy Large format sheet fed offset printing press Manufacturer, Factory
Best Semi automatic flexo printing slotting diecutting machine Manufacturer, Factory

Best Semi automatic flexo printing slotting diecutting machine Manufacturer, Factory
Discount Wide web preprint flexographic printing machine Exporter, Companies

Discount Wide web preprint flexographic printing machine Exporter, Companies

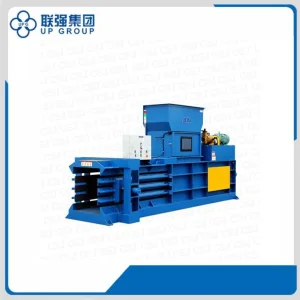

High-Quality Carton Bale Press Machine Suppliers, Company

High-Quality Carton Bale Press Machine Suppliers, Company

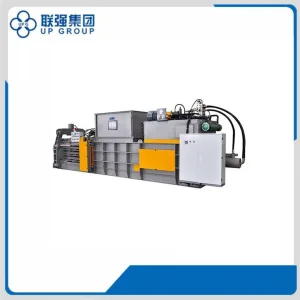

High-Quality Horizontal Waste Paper Bale Press Machine Exporters, Service
