📊 Machine Specification
| Maximum Paper Width | < 1820mm |
| Maximum Printing Width | < 1760mm |
| Printing Repeat (Standard) | < 1760mm |
| Printing Repeat (Variable) | < 600-1600mm / 800-2000mm |
| Maximum Unwinder Diameter | < 1524mm |
| Maximum Rewinder Diameter | < 1524mm |
| Maximum Mechanical Speed | < 260m/min |
| Plate Thickness | < 1.7mm |
| Tape Thickness | < 0.5mm |
| Substrate Weight | < 100-300gsm |
| Air Pressure | < 8KG |
| Power Requirement | 380V, AC±10%, 3ph, 50HZ |
| Tension Control Range | 10-60kg |
| Tension Control Tolerance | ±2KG |
| Ink Supply System | Automatic Circulate |
| Dryer System | Gas drying or electric heating and drying |
| Dryer Temperature | Max 120℃ |
| Main Drive | Servo Motors control |
| Printing Board | Casting Board (for enhanced stability) |
| Registration System | Automatic Registration (material waste reduction) |

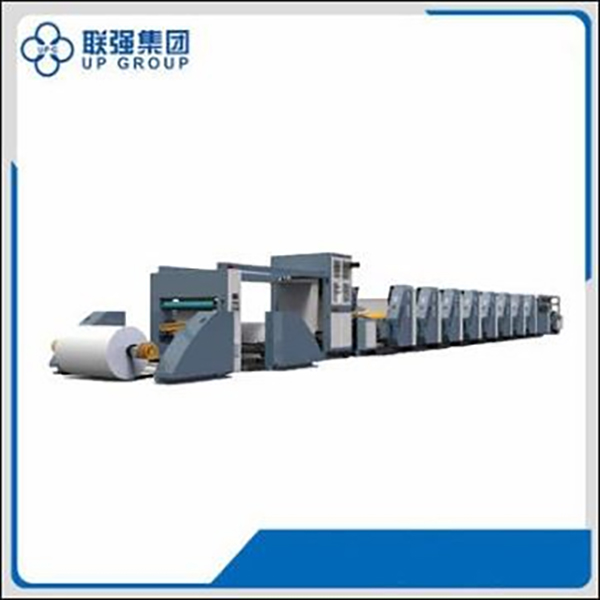

⚙️ Machine Description
✔ Upper web passing design for higher efficiency and faster printing speeds.
✔ Individual temperature control per unit to improve drying capacity and prevent plate-drying with water-based ink.
✔ Full servo system transmission control for superior machine stability.
✔ Long-distance diagnosis function for quick troubleshooting and real-time status reporting.
✔ Continuous operation with non-stop auto unwinder and rewinder systems.
✔ Unique anti-bumping design with hydraulic locking for plate cylinders and anilox rolls.
✔ Versatile drying options: Steam, natural gas, or electric heating.
✔ Optimized automation: Including auto web passing and automatic cleaning functions.
🖥️ Main Control System
▹ PLC central integrated control system for unified management.
▹ Pre-operation automatic performance monitoring of the entire system.
▹ Real-time data checking for tension control and operation parameters.
▹ Automatic pneumatic component control and sealed electric cabinets with fan cooling.
▹ Precision instruments for LED power voltage, frequency, and motor current monitoring.
▹ Enhanced anti-jamming measures and comprehensive system protection.
🌟 Why Choose Our Solutions?
★ Commitment to sustainable manufacturing and eco-friendly material usage.
★ High-tech product expansion backed by a complete quality affirmation system.
★ Highly adaptable machine configurations to meet diverse printing requirements.
★ Advanced and efficient printing technology designed for long-term reliability.
★ Professional team support ensuring growth and dream-oriented development.
★ Robust sales channels and an excellent reputation for wide web preprint flexographic equipment.
❓ Frequently Asked Questions
Q1: What is the maximum mechanical speed of this flexographic printing machine?
A: The machine is capable of reaching a maximum mechanical speed of up to 260m/min, ensuring high-volume production efficiency.
Q2: What types of substrates can be used?
A: This equipment is designed to handle substrates ranging from 100 to 300gsm, making it suitable for a wide variety of paper and packaging materials.
Q3: How does the machine handle drying at high speeds?
A: It features individual temperature control in each upper unit and offers multiple drying methods, including steam, natural gas, or electric heating, to ensure effective drying even at peak speeds.
Q4: Does the machine include an automatic registration system?
A: Yes, it is equipped with an automatic registration system that significantly reduces material waste and improves printing precision.
Q5: Can the machine be monitored or fixed remotely?
A: Yes, the system includes a long-distance diagnosis function which allows for quick troubleshooting and real-time equipment status reporting.
Q6: What is the benefit of the "Upper Web Passing" design?
A: The upper web passing design allows for more efficient operation and supports faster printing speeds while maintaining high quality.
