• Lead-edge feeding unit.
• 4 Shafts feed wheel.
• Linear guideway lateral moving device.
• Precious side squaring.
• Feeding stroke is adjustable.
• Skip feeding is available with counter.
• Trouble shooting with digital display.
• Volume air of feeding cam box is adjustable.

• Auto zero set.
• O.S and D.S side guide position motorized adjustment with digital display.
• Front stop gap and position adjusted manually.
• Backstop position motorized adjustment with digital cylinder.
• Side squaring fixed on THE OS guide and driven by air cylinder.
• Feed roll gap motorized adjustment with digital display.
• Quick-change feeding rubber roll.
• With hitch touch screen display on each unit and diagnostic display.
• Modem on line support.

• Top printing, vacuum box transfer with ceramic transfer wheel.
• Rubber roll ink system.
• Ceramic anilox roll.
• Out diameter of printing cylinder with printing plate: Φ405mm.
• PLC ink control system, ink circulate and quick washing system.

• Auto zero set.
• Anilox roll/ printing cylinder gap motorized adjustment with digital display.
• Printing cylinder/ impression roll gap motorized adjustment with digital display.
• Vacuum transfer unit GAP is motorized adjustment with digital display.
• PLC control printing register and printing horizontal move.
• Vacuum damper adjustment by pneumatic automatically.
• Quick mounting printing plate device for saving order change time.
• Dust collector.

• Pre-creaser, creaser and slotter.
• Linear guideway lateral moving device with universal cross joints.

• Auto zero set.
• Single shaft double knife slotter structured.
• Crush roll GAP motorized adjustment with digital display.
• Creaser roll motorized adjustment with digital display.
• Slot shaft gap motorized adjustment with digital display.
• Center slot head movable, with long distance.
• Steel to steel driven transfer.
• Knife in to groove to protect slotting knife.
• Box height and slotter register motorized controlled by PLC.
• Slotter knife use 7.5mm thickness knife.

• Bottom die-cut for top printer.
• Out diameter of the die-cutting roll Φ360mm.
• C.U.E quick change anvil.

• Auto zero set.
• Anvil drum/ die cut drum gap motorized adjustment with digital display.
• Die-cutting roll gap motorized adjustment with digital display.
• Feed roll gap motorized adjustment with digital display.
• Settable speed difference compensation to prolong the service of anvil cover.
• Grind the anvil cover with sand belt to prolong the service life of anvil cover.

• Two belts transfer which speed can be adjusted with inverter independently. Fish scale stacking.
• PLC control lifting with inverter adjustment.
• Max stacking height reach 1700mm.
• Pneumatic side quaring.

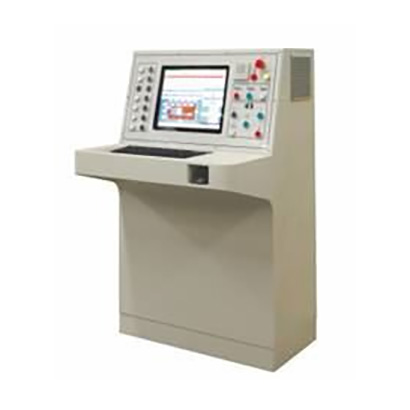

• Microsoft window base computer control system for all the gap and box dimension adjustments with order memory capacity: 99,999 orders.

• Auto zero set for feeder, printers, slotters, die-cutter unit.
• Remote service support with internet, convenience for after sells maintenance.
• History data and order are easy to be research, save order change time.
• Production and order management, available to connect with the customer internal ERP.
• Dimension/ calliper/ GAP automatic setting.
• Article date base for repeat order settings.
• Operator, maintenance and trouble-shooting support.

• We use the latest manufacturing techniques and quality control procedures to ensure that our machines meet the highest standards.
• Our product structure is constantly optimized and improved, and the popularity and credibility of our Flexo Printing Slotter Die Cutter Machine are constantly increasing.
• Our Corrugated Board Printing Machines offer unparalleled performance and reliability, making them an investment that pays off for years to come.
• This company complies with the industrial policy, and we adopt a modern management mechanism.
• We are a Chinese factory that specializes in producing high-quality Corrugated Board Printing Machines.
• Our company adheres to the people-oriented philosophy of openness, inclusiveness and equality to create more value for customers and employees.
• Our machines are designed with the needs of our customers in mind, making them highly customizable and versatile.
• Our company's mission is to meet the ever-increasing needs of customers. With high technology and years of experience, we provide customers with excellent quality Flexo Printing Slotter Die Cutter Machine.
• We pride ourselves on our superior quality products and excellent customer service.
• We strictly design every detail of the product and strive to humanize the product experience. Our purpose is: in the customer, for the customer. We provide customers with satisfactory service and products.
