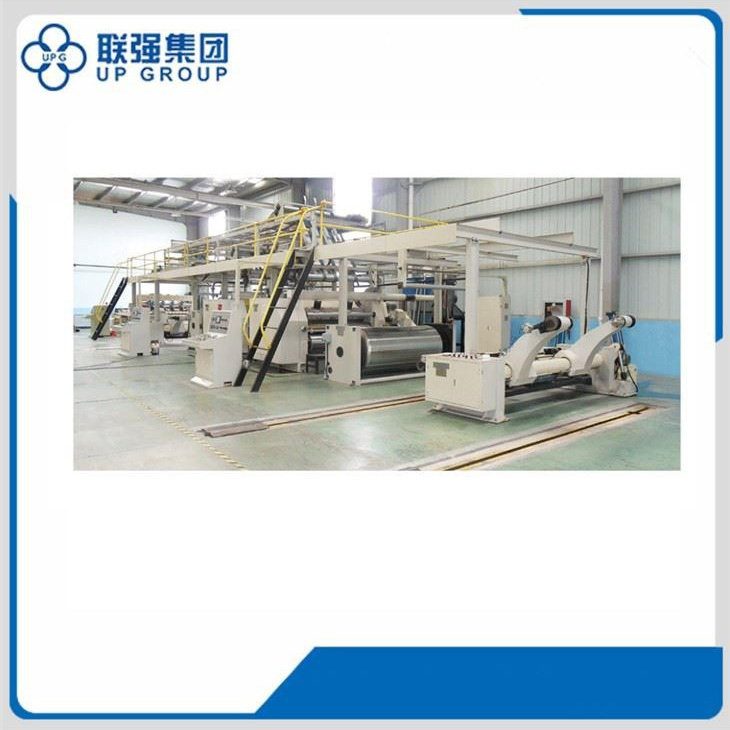

LQWJ150 Cassette Single Face Corrugated Board Producing Line

Send Inquiry

Product Description

Specification

Max. Mechanical Speed	150m/min
Production Line Length	About 27 meters
Flute Profiles	A, C, B, E flute
Total Power	3 Phase 380v 50hz 92kw

Machine Description

Railing and Track

Moving paper roll, light and flexible.

Rail way is on the ground, main structure is welded with 16# steel, firm and durable.

Upper steel plate will be welded when it is assembled.

Each set of mill roll stand consists of two sets of railing for reels.

Pre-Heater

Each roller surface is well whetted and chrome plated, smooth and durable.

Electro motion adjust the dimension of pre-heater, the range of adjustment: 60-270 °.

The pre-heating roller is made according to national container safety standard.

Pre-heating roller and guiding paper roller are electrically galvanized.

Electro motion adjust the dimension of pre-heater, suitable with different grades of paper and machinery speed.

320S Cassette Single Facer

The main corrugating type of the mainframe corrugating type (Tungsten Carbide Corrugating Roll is optional).

The corrugated roller is designed under the pressure roller, which reduces the center of gravity of the machine and reduces the vibration.

The design structure of the inner suction corrugated roller is used to make the paperboard more smooth.

The glue department adopts the independent transmission, according to the PLC automatic control adjustment of the glue quantity.

Steam fast change: fast plug type conversion of steam, convenient and flexible.

The size of the glue is automatically adjusted according to the speed or electric adjustment.

320mm of corrugated roller material selection 48 chromium molybdenum alloy steel.

The pressure roller is 400mm; Cots is 280mm; Phi 160mm scraping rollers.

Phi 400mm automatic rotary heating roller.

Apply Photo

Hydraulic Shaftless Mill Roll Stand

Symmetrical structure, may clamp two scrolls at the same time.

Hydraulic control for lifting, lowering, opening, and closing of arms.

Pneumatic control of the web tension.

The paper chuck adopts expansion type.

Bridge Conveyor

Processed accurately through transmission belt to the bridge using the reserve for next process.

Traction speed and single machine synchronous control by frequency conversion.

NC Slitter Scorer with Cut-Off

Synchronous control, cutter speed is in strict synchronization with the single facer.

Tungsten steel thin knife featured by automatic grinding and high slitting quality.

Independent servo control for longitudinal knife arrangement.

Fuji AC servo motor and Schneider low-voltage apparatuses.

Precise NSK and IKO bearings imported from Japan.

Alloy steel cutter shaft ensures dynamic balancing and high rigidity.

Automatic Hanging Basket Stacking Machine

4-segment belt transport with hanging basket stacking and accurate counting.

Dynamic sandwich conveyor belt with manually adjustable clearance.

Paperboard transport controlled by CPG reducing motor and frequency converter.

Belt-type hanging basket stacking platform controlled by AC servo.

Rear stop plate positioned by AC servo for quick order replacement.

Why Choose Us?

Committed to providing the best possible products and sustainable value.

Full range of service capabilities from design to installation and commissioning.

International standards, professional research, and development.

Personalized solutions to fit unique customer needs.

Professional manufacturer with a focus on quality and craftsmanship.

Frequently Asked Questions

1. What is the maximum mechanical speed of the production line? The production line reaches a maximum mechanical speed of 150 meters per minute.

2. Which flute profiles can this machine process? The machine is compatible with A, C, B, and E flute profiles.

3. What are the key features of the 320S Cassette Single Facer? It features an inner suction corrugated roller for smoother board production, PLC automatic glue adjustment, and a design that reduces vibration by lowering the center of gravity.

4. How is the stacking process managed? The machine uses an automatic hanging basket stacking system with 4-segment belt transport, ensuring accurate counting and tidy stacking.

5. What brand of electrical components are used in the NC Slitter Scorer? It utilizes high-quality components including Fuji AC servo motors and Schneider low-voltage apparatuses for reliable operation.

6. Can the pre-heater be adjusted for different paper grades? Yes, the electro-motion adjustment (ranging from 60-270°) allows the pre-heater to be optimized for various paper grades and machinery speeds.
