Wholesale Semi automatic flute laminator Manufacturer, Factory

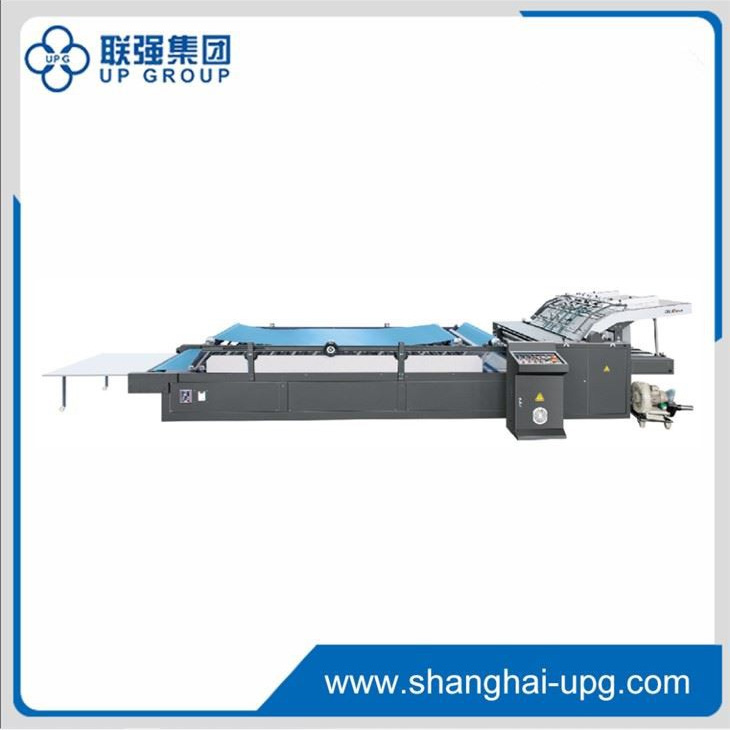

Machine Photo

Specification

Model	LQB-1300	LQB-1480	LQB-1650
Max. Sheet size	1300x1100mm	1480x1100mm	1650x1300mm
Min. Sheet size	350x450mm	350x450mm	320x450mm
Power consumption	9kw	9kw	11kw
Speed	0-108m/min	0-108m/min	0-90m/min
Weight	3t	3.1t	3.1t
Overall Dimensions	774019501500mm	774021501500mm	774022501400mm

Machine Description

✓ Turnup bridge plate is convenient for cleaning, discontinuous water-circulating system ensures washing clean.

✓ Automatic feeding for bottom sheet, manual feeding for top sheet (side feeding is optional).

✓ Flexible front register ensures bottom sheet does not exceed top sheet, with adjustable lamination alignment.

✓ Compatible with paperboard over 350gsm and A/B/C/D/E/F corrugated cardboard.

✓ Intelligent control system for energy-saving and efficient operation from the paper stack.

✓ Equipped with high-precision plastic block device to effectively save glue.

Why Choose Us?

★ Excellence in production and customer service for the best user experience.

★ Dedicated to industry innovation and independent technology research and development.

★ Superior performance achieved through high-quality materials and precision engineering.

★ Years of R&D and manufacturing experience in Semi Automatic Flute Laminators.

★ Products designed for maximum efficiency, durability, and meeting customer-specific needs.

★ Professional manufacturer regularly participating in global exhibitions to understand market trends.

Frequently Asked Questions

Q1: What materials can the Semi Automatic Flute Laminator handle?

The machine is designed to process paperboard of more than 350gsm and various corrugated cardboards including A, B, C, D, E, and F flute types.

Q2: How does the machine ensure glue efficiency?

The laminator uses a high-precision plastic block device specifically designed to minimize waste and save glue during the lamination process.

Q3: Is the machine easy to clean and maintain?

Yes, it features a turnup bridge plate design which is convenient for cleaning, and a discontinuous water-circulating system to ensure the machine remains clean.

Q4: What is the maximum production speed of these models?

The LQB-1300 and LQB-1480 models offer a speed range of 0-108m/min, while the LQB-1650 model operates at 0-90m/min.

Q5: Can the feeding system be customized?

While the standard setup is automatic feeding for the bottom sheet and manual feeding for the top sheet, side feeding for the top sheet is available as an optional feature.

Q6: How does the front register system work?

The machine utilizes a flexible front register that ensures the bottom sheet never exceeds the top sheet. It is fully adjustable for precise front-and-rear lamination.
